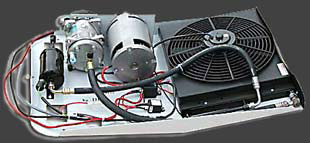

Air-Conditioner HY-GLOO , air conditioning unit designed for use in vehicle cabins

Technical specifications air-conditioner Hy-Gloo

Air-conditioner Hy-Gloo Generation III is a split air conditioning unit designed for use in vehicle cabins

Air-conditioner Hy-Gloo



Air-conditioner Hy-Gloo Generation



L = 820 mm

l = 530 mm

ht = 150 mm

Dimensions, weight – Click on photo

Air-conditioner Hy-Gloo only needs to be connected to the battery.

Air-conditioner Hy-Gloo always runs independently from the vehicle’s engine. There is no mechanical connection, only 2 electric cables to be connected to the + and -
The cooling liquid used is R134A
Air-conditioner Hy-Gloo only uses new, CE approved components from market



leadermanufacturers

Sanden Condensers

Sanden Compressors

Good-Year flexible rubber hosing

Steel joints and O'ring seals

TW and CZ Electric Motors

Bora Evaporators



Air-conditioner Hy-Gloo has been laboratory tested and the test results are available in the « Laboratory Tests »


Air-conditioner Hy-Gloo Generation III is available in :

12 and 24 Volt versions

2 power levels for each voltage type

Version fitted into the bodywork with vertical or horizontal evaporator

Integrated version : HG is completely integrated inside the vehicle structure.



Click to see how this version is fitted to a Mercedes and a Small Car .....



Air-conditioner Hy-Gloo can be equipped with Aysit joints : It is possible to have HG in 2 separate parts already filled with gas!!!

Hy-Gloo can be fitted:

1. Horizontally ; on the cabin roof or bonnet...

2. Vertically ; on the side of a motor or cabin...

In a hanging position when space is restricted : for example a cramped cabin with window : Air-conditioner Hy-Gloo can be fixed in a space of ????? with the condenser in a hanging position .....


For ease of installation Hy-Gloo can pivot up to 90° .

For ease of installation Hy-Gloo can pivot up to 90°.

It is intended that Air-conditioner Hy-Gloo can be fitted to all vehicle types and in all positions.

Hy-Gloo is modified as per the purchaser’s specifications and then bench tested prior to delivery.
Neither specialised tools nor any previous experience of air conditioning systems are needed to install Hy-Gloo.

Air-conditioner Hy-Gloo comes with a 1 year guarantee

All Hy-Gloo components are approved and standardised.
In the near future it will be possible to have Hy-Gloo installations serviced by vehicle air conditioning technicians anywhere in the world.

Would you like to see some Hy-Gloo applications?

You can then decide on the required Air-conditioner Hy-Gloo Generation III specifications.



Video Installation Air-conditioner Hy-Gloo

Air-conditioner Hy-Gloo only needs to be connected to the battery.
